Main features

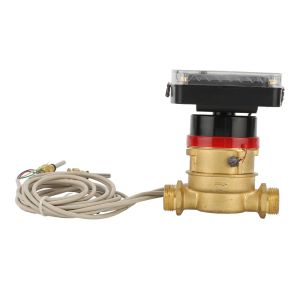

●The YG-RLM (S) series of heat meters is a new generation of integrated single flow heat meters developed on the of the YG-RLM series for the European and Russian markets. This product, which uses advanced non-magnetic technology, is characterized by a simple structure, compact size, design, and light weight. It can be used to measure the flow rate of heating and cooling systems in living areas. The temperature range is from 4 to 95°.

●Units of measurement: kWh, total kcal are optional

●For single jet heat meters, communication is via M-BUS, RS-485 and pulse output is optional.

Technical Parameters:

Features:

1. Flow range: 0.6~2.5m3/h.

2. Minimum temperature difference 3°

3. Horizontal/vertical installation

4. Built-in and detachable installation design, to prevent damage during adjustment

5. Smart multi-stream design, can record rate and flow

6. Advanced non-magnetic sensing technology

7. High precision design, meeting 2nd class metering requirements of EN1434 and CJ18 standards

8. Battery life over six years

9. Optional remote RS485 or M-BUS output, for convenient remote systems

10. Payment settlement can be extended, data storage 18 months

11. 360-degree rotating display, for easy reading

12. Tilted LCD display, viewing effect

13. Wide measuring range (q s/q i =100:1)

14. Low start-up flow

15. A to measure thermal and cold energy

16. For cold water inlet (heat meter for return water side can be provided as per user requirement)

17. PT100 temperature sensor pair

18. Ambient grade: A

Main technical parameters:

Rated flow rate (Qn) 0.6m3/h 1.5m3/h 2.m3/h

Flow range (m3/h) 0.012~1.2 0.03~3 0.05~5

Pressure loss (KPa/Qp)

Refer to Figure 1 24 24 24

Maximum pressure (MPa) 1.

Temperature range (℃) 4~95

Widely applicable scenarios
Regional heating/cooling system - settlement of heat (cold) trade at building entrances and heat exchange stations.
Centralized heating household metering - allocation of heating costs for residential, apartment, and other users.
Industrial waste heat recovery measurement - measuring the heat energy recovered and utilized during the process.
Ground source/water source heat pump system - metering heat pump system exchanges heat with buried pipes/water bodies.
Solar central hot water system - measures the heat provided by the solar collection system.
Energy management of large-scale complexes - conducting energy consumption assessments of different internal areas such as shopping malls and hospitals.
